Numerically controlled machining centres for Wooden Parts
Material
- Wood
Applications
- Automatic 3, 4 or 5 axis centres designed for milling large dimension wooden panels and parts
- Milling, cutting, drilling
Allowable part dimensions:
- Length (X axis): 2800 mm as standard / up to 9000 mm as option
- Width (Y axis): 600 x 1,300 mm
- Height (Z axis): 200 mm as standard / up to 400 mm as option
- Speeds: X axis = 75 m/min – Y axis = 40 m/min / Z axis = 75 m/min

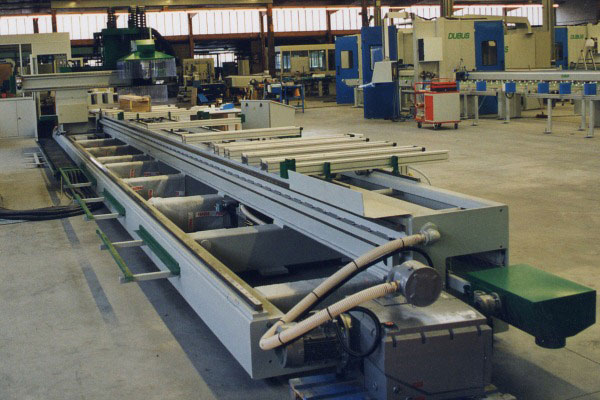

- 3, 4 or 5 axis numerical control centre with moving ram and fixed working table
- Allows milling, cutting, drilling and routing operations on the top and sides of parts
- Modular construction, permitting the number of machining units and carriages to be adapted for greater productivity and quality from the operations performed,
- tailor made working area, smooth table, grooved vacuum table, mobile clamp and/or sucker cross slides, depending on the envisaged parts and applications
- Manual or optional automatic roller, conveyor or belt part feeding
- Varied applications: street furniture, wooden buildings, verandas, fitting out, concrete formwork, panels…
- accuracy +/- 0.2 mm per linear metre as standard or overall with calibration
- Optional automatic programming post processor including batch and 2/3D model file import
