Numerically controlled machining centre for Aluminium profiles
Material
- Aluminium
- Steel
Applications
- 3 or 4 axis machining centre for work on Aluminium, Light Metal, even Steel parts
- Drilling, milling and tapping operations
- Suitable for curved profiles and complex shapes
Allowable part dimensions:
- Length (X axis): 3,000 mm to 15,000 mm
- Width (Y axis): 200 mm or 400 mm
- Height (Z axis): 200 mm or 400 mm
- Speeds: X axis = 50 m/min – Y axis = 30 m/min / Z axis = 15 m/min
- 3 axis numerical control centre

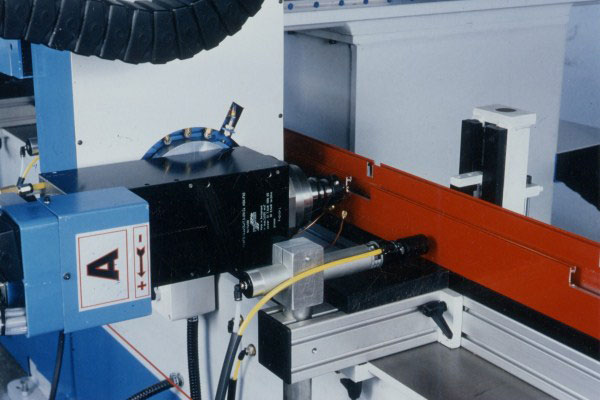

- Machining spindle mounted on the 4th numerically oriented axis, power 5 to 12 kW

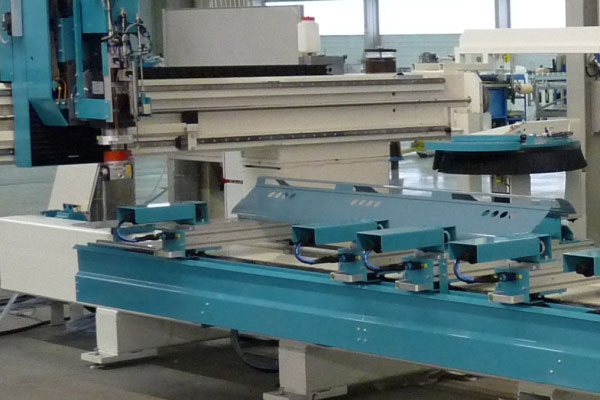

- Comprising a large section fixed frame mechanically welded structure and a moving ram

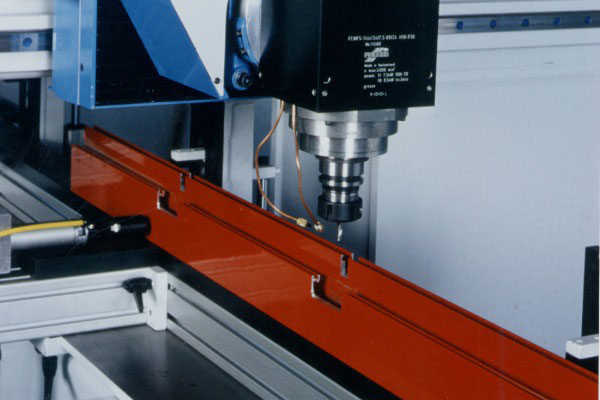

- Allows drilling, milling, and tapping operations including on curved profiles and complex shapes
- Ability to work as double station using its clamping system, movable length stop and collision prevention software
- On board tool loader for increased flexibility and productivity
- Delivered with control console and electrical cabinet
- Varied applications: industrial joinery, vehicle, aircraft and rail subcontracting…
- Combines accuracy and speed of execution
- Connects to your CAMM via user friendly software, for the recovery of your files and machining program management
