CND 3000

Allowable part dimensions:

• Length (X axis): 5,000 to 20,000 mm (other lengths on request)
• Width (Y axis): 3,000 x 5,000 mm
• Height (Z axis): 200 mm (other thicknesses on request)

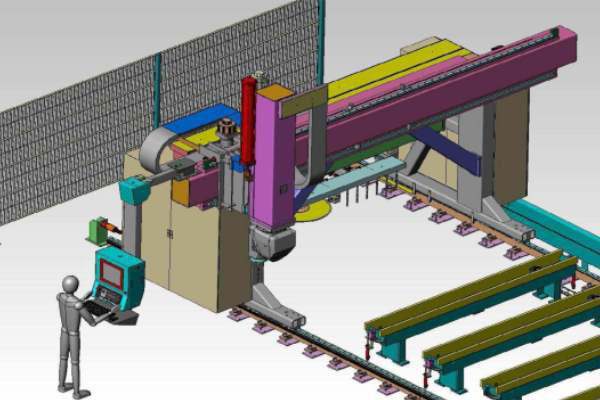

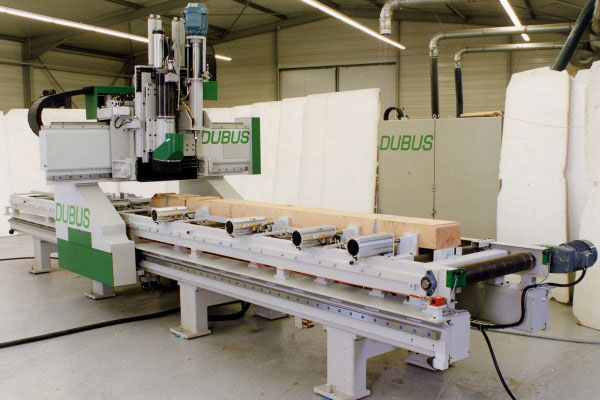

• 3, 4 or 5 axis numerical control centre with moving gantry and fixed working table
• Designed for work on parts in Wood and derivatives

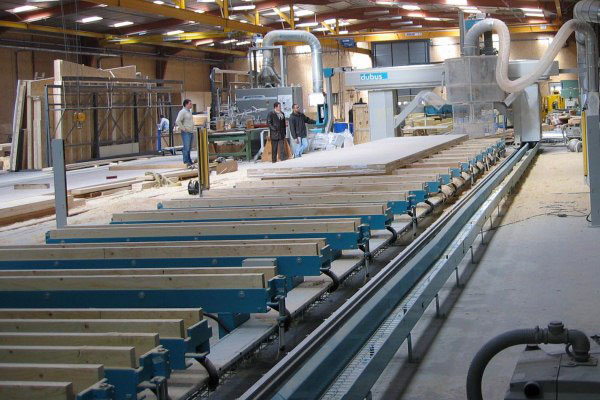

• Large capacity working table, smooth table, grooved vacuum table or 3,000 mm width bridges fixed to the ground, on which parts up to 200 x 3,000 x 20,000 mm can be placed as standard and greater on request
• Parts fixed by stops, clamps, or suction cups and vacuum pumps
• Large choice of spindles from 12 to 30 kW 6,800 to 24,000 rev/min direct mounting (3 axis) or on 4 or 5 axis wrist joint with automatic tool changer, 12, 16 or 24 tool magazine(s)
• Allows cutting out operations for beams, surfacing by milling cutter or planing, drilling / milling / profiling / mortising on composite axes, or even sawing
• Meets the needs of users who are seeking both high machining capacities, versatility and increased working accuracy
• Varied applications: wooden structures, frames, ply adhesive or Kerto structures, concrete formwork, lorry flooring, railway sleepers, engineering structures…
• High accuracy +/- 0.2 mm per linear metre as standard or overall with calibration
• Automatic programming post-processor with batch file and or 2/3D model import as option
