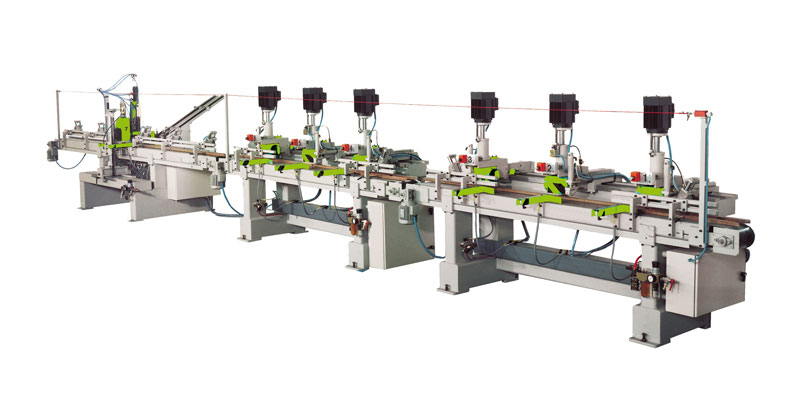

Numerically controlled centre for trimming, cutting and hardware fitting on Wooden door stiles
Materials
- Wood
Applications :
- Automatic centres for the manufacture of door frames and reveals for internal doors
- Trimming
- Cuts
- Fitting locking plates, hinge-sockets, hinge pins and hinges
Allowable part dimensions:
- Length 400 to 2,250 mm (3200 as option)
- Width from 75 to 600 mm
- Thickness from 35 to 150 mm
- Modular numerically controlled centres for work on wooden internal door frames
- High efficiency, great execution speed, accuracy
- Trimming Italian style reveals and door frames (circular trimming guaranteeing a cut without splinters)
- Cuts
- Fitting locking plates, hinge-sockets, hinges and hinge pins
- Allows the processing of large daily volumes, even with very small, customised manufacturing batches
- Centre usable as a unit or in a line combining several specialised machines (for example a Locking Plate line and a Hinge-socket line)
- Automatic programming post-processor with batch file and or 2/3D model import as option
- Rate approximately 2 to 4 parts / minute
- Accuracy +/- 0.2 mm
- The FLEXDOOR range is available in several models depending on applications
