Machining and hardware fitting centres for wooden window frames
Materials
- Wood
Applications
- Automatic centres for finishing fixed and opening wooden window frames
- Cutting, drilling,
- Fitting hardware
Allowable frame dimensions:
- 300 x 300 mm or 2,500 x 5,000 mm
- Thickness 180 mm maximum
- Weight: no limit

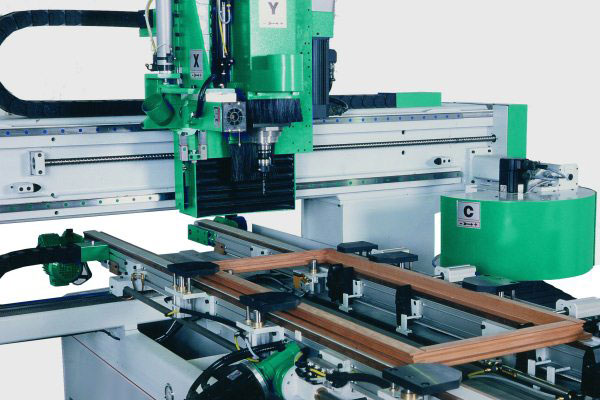

- Double sided numerically controlled centre for work on solid softwood opening and fixed window frames

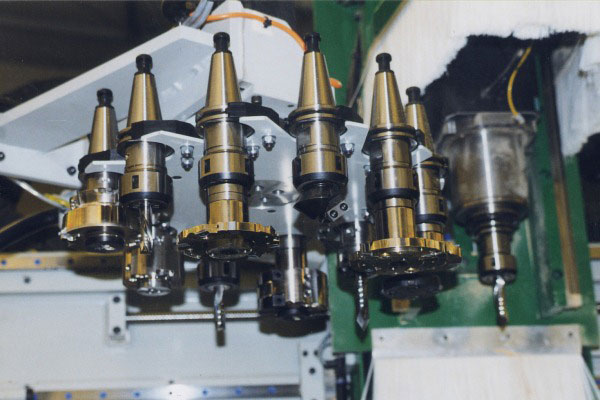

- Modular construction, work on 3 faces, possible to add a large number of spindles for a large variety of cuts
- drilling and hinge pin fitting, cutting drainage slots and hardware housings
- Fitting hinge pins, hinge-sockets, locks and screw fastening casement bolts
- High efficiency, great execution speed, accuracy
- Rate approximately 2 to 4 parts / minute
- Accuracy +/- 0.2 mm
- Allows the processing of large daily volumes, even with very small, customised manufacturing batches
- Centre can be used as a unit or in a line combining several specialised machines
- Automatic programming post-processor with batch file and or 2/3D model import as option
- The FLEXWIN range is available in several models depending on applications
